Equipment
Conveyors
Many sizes available — call for more information about conveyors fit to your specific aggregate and recycling needs.
Conveyors
36″ × 60′ Stackable Conveyor
— 15 HP electric motor with shaft mount reducer, V-belt drive and guard
— Lagged head pulley with shaft and bearings
— Wing tail pulley with shaft and bearings
— Troughing idlers and return rollers
— 5′ long receiving hopper
— 2-ply rubber conveyor belting
— New and used 24″, 30″ and 36″ × up to 60′ long stackable conveyors
Conveyors
36″ × 58′ Radial Stacker
— Heavy Duty Lattice Frame
— 25 HP TEFC Electric Motor
— Dodge S-R-M- V-Belt Drive and Guard
— Lagged Head Pulley
— Wing Tail Pulley
— Cema Sealed Bearing Troughing Idlers
— Impact Idlers in Receiver Section
— Pivot Plate Assembly
— Mounted on Single Axle Carrier with(4) 11X22.5 Tires and Rime, Air Brakes, King Pin, Manual Raise and Travel
Conveyors

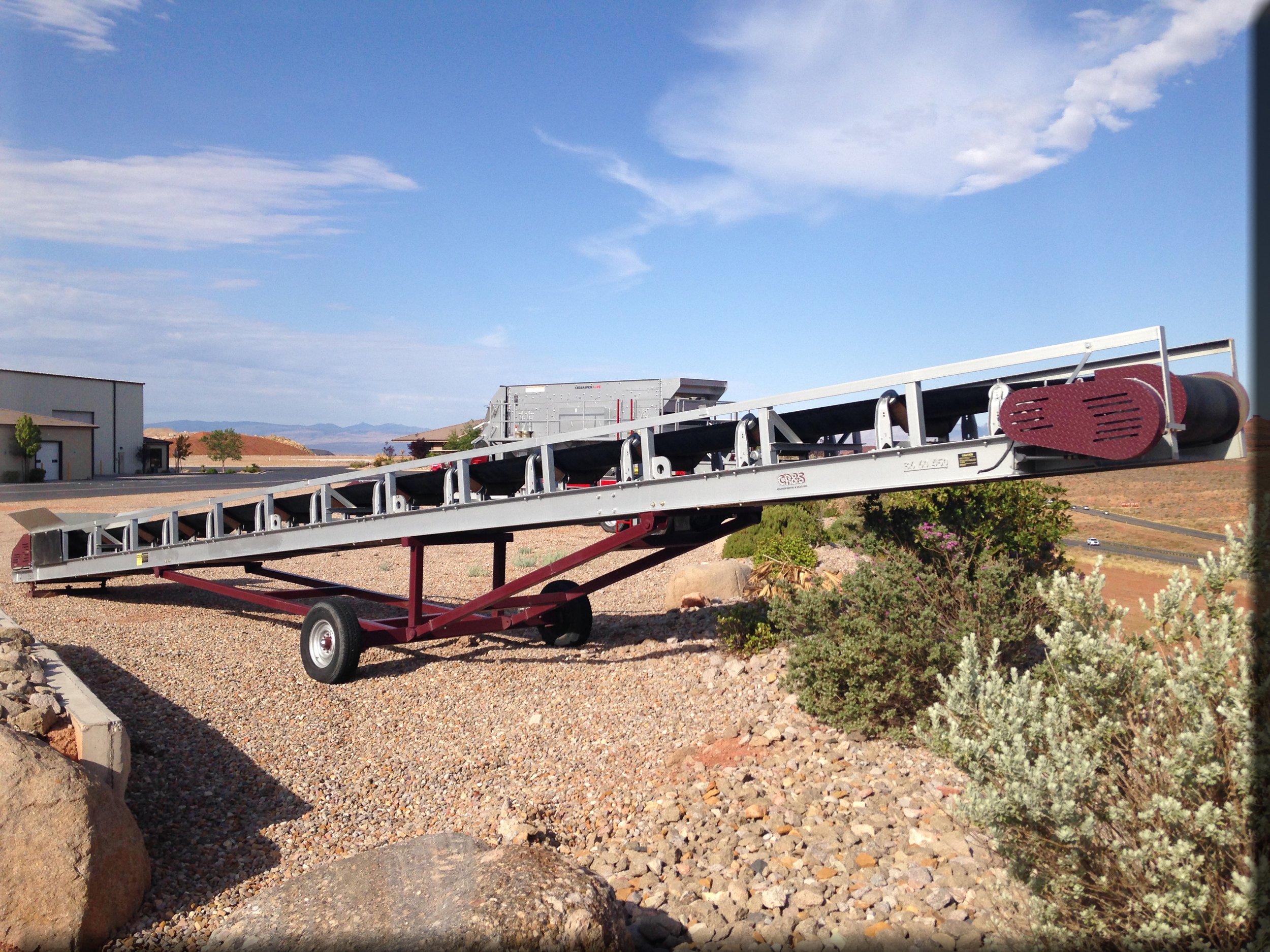

36″ X 60′ Pit Portable Radial Stacker
— Heavy Duty Channel Frame with Angle Iron Top Frame and Supports
— 15 HP Electric Motor with Shaft Mount Reducer, V-Belt Drive and Guard
— Wing Tail Pulley with Shaft and Bearings
— Lagged Head Pulley with Shaft and Bearings
— Troughing Idlers and Return Rollers
— 3 Ply Rubber Conveyor Belting
— Pit Portable Carrier with Manual Raise & Lower, Pivot Wheels for Radial Travel
— 5′ Long Receiving Hopper with Bolt On Wing Extensions
— Pivot Plate Assembly
— Tow Hitch
Equipment specs are subject to change based on component availability.
Need help spec'ing the right machine?
Tell us about your material and we'll match you with the right setup.
