Portability, power, and the options you need to get the job done — built for aggregate, recycling, and mining operations.
Screens

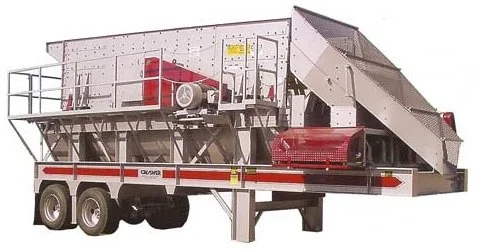

Portable Horizontal Screen
6’ X 20’- 3 Deck Horizontal Screen
Triple Shaft Vibrating Mechanism, Adjustable Speed, Timing & Stroke, 40 HP 1200 RPM Motor with Drive and Guard, 48” Under Conveyor: 10 HP Electric Motor with Drive and Guard, Shaft Mount Reducer with V-Belt Drive, Lagged Head Pulley, Wing Tail Pulley, 3 Ply Conveyor Belting 36” Side Discharge Conveyor: 10 HP Electric Motor with Drive and Guard, Shaft Mount Reducer with V-Belt Drive, Lagged Head Pulley, Wing Tail Pulley, 3 Ply Conveyor Belting. Dual Axle Portable Carrier: (8) 11 X 22.5 Tires and Rims, Air Brakes, King Pin, Mud Flaps, Tail Lights, Service Walkway Around (3) Sides with (2) Ladders to Grade, (4) Screw Jacks with Support Stands ¼” Plate Fabricated Chutes, Straight Center off Top Deck with Flop Gate to Side Discharge Conveyor, Middle Deck Chutes to Side Discharger Conveyor, Bottom Deck Chutes to Below Frame. All ¼” A-R Bolted in Liners.
Optional Equipment
36” Reject Conveyor: 7.5 HP Electric Motor, Shaft Mount Reducer with V-Belt Drive, Lagged Head Pulley, Wing Tail Pulley, 3-Ply Conveyor Belting with Variable Flop Gates for Rejecting Fines Screen Cloth Panels Switchgear & Controls
Screens
Portable Incline Screen
6′ x 16′ – 3 Deck Inclined Vibrating Screen
Includes Heavy Duty Deck Frames for 4′ Long Screen Panels, 3/8″ Thick Side Plates, 150 MM Roller Bearings, A/R Lined Feed Box, V-Belt Drive and Drive Guard, Pivoted Motor Base, Start/Stop Bounce Control Snubbers, 25 HP Electric Motor. 48″ x 30′ Long Underscreen Fines Gathering Conveyor: 10 HP Electric Motor, Shaft Mount Reducer with Drive and Guard, 5″ Diameter Troughing and Return Idlers, 2 Ply Rubber Conveyor Belting. Chassis: Dual Axle, Heavy Duty Chassis with Eight (8) 11.00 X 22.5 Truck Tires and Rims, Air Break System, Oversized Product Chutes with Replaceable A/R Liners, Highway Travel Package that Includes Lights and Mud Flaps, Fifth Wheel Pin & Walking Beam Axle
Optional Equipment
— Walkway around 2 Sides and back of the Screen with Handrails and Toeboards
— Product Blending Gates in Top Deck and Second Deck Product Chutes
— Hydraulic Package to Raise and Lower the Screen to Operating or Highway Travel Position
— 24″ X 12′ Long, Side Discharge Belt Conveyor for Third Deck Product: 5 HP, Electric Motor, Shaft Mount Reducer and Guard, 5″ diameter, Troughing and Return Idlers, 2 Ply Rubber Conveyor Belting
Equipment specs are subject to change based on component availability.
