SN 4142553

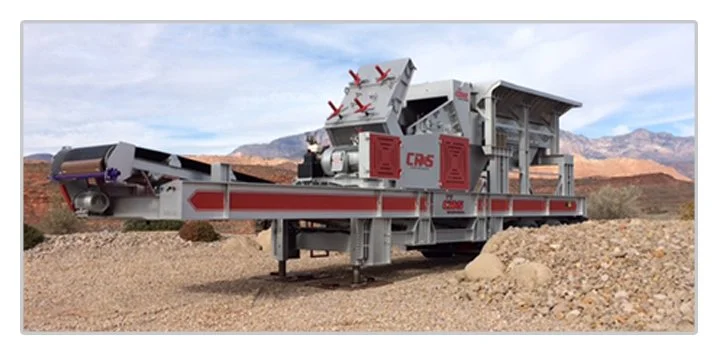

CRUSHBOSS™ 4142 HORIZONTAL SHAFT IMPACTOR: Feed Opening of 32” x 43”, 41” Dia. x 42” Wide Four Bar Rotor with Heavy Duty Reversible Blow Bars, Hydraulic Lid Opening.

SIMPLICITY 45″ x 16′ VIBRATING GRIZZLY FEEDER: 5′ Long Adjustable Grizzly Bars, A/R Replaceable Liners, 25 HP TEFC 1200 RPM Electric Motor, Load Hopper and Support Structure.

42″ UNDER CRUSHER CONVEYOR: 15 HP Electric Motor, Shaft Mount Reducer with V-Belt Drive, Lagged Head Pulley, Wing Tail Pulley, 3-Ply Conveyor Belting.

ELECTRIC MOTOR DRIVE: 200 HP, TEFC, Quarry Duty Electric Motor with V-Belt Drive & Guard.

3 AXLE PORTABLE CHASSIS: (12) 11 x 22.5 Tires and Rims, Air Brakes, Mud Flaps, Lights, King Pin, Service Platform and Ladder to Grade.

HYDRAULIC STABILIZER PACKAGE: (4) 50,000# “Stiff-Leg” Hydraulic Jacks with Locking Pins, Gasoline Engine Powered Hydraulic Pump and Reservoir Complete with Directional Control Valves.

Optional Equipment:
• ELECTRICAL SWITCHGEAR: Removable Stand Enclosure with 400 AMP Breaker, Crusher Soft Start with By-Pass Contactor, 25 HP Variable Speed Feeder Drive, Conveyor Motor Starters and Operator’s Control panel with Lighted Push/Pull Buttons and EPO Switch, AMP Meter and Hour Meter, (2) Spare Plug-In Receptacles for Off-Plant Motors.

• MAGNET: Self Cleaning Permanent Recycling Magnet, 5 HP Electric Motor with V-Belt Drive and Guard, Structural Steel Mounting Structure located over the Head Pulley.
