SN 3660463

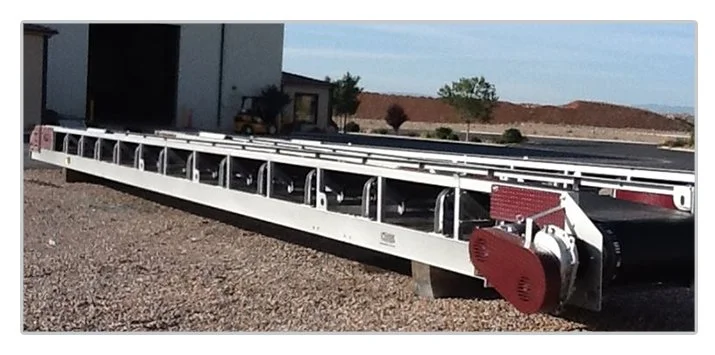

Base Unit Consisting Of:

— Heavy Duty 10” Channel Frame with Angle Iron Top Frame

— 15 HP Electric Motor, Shaft Mount Reducer with V-Belt Drive and Guard

— Wing Tail Pulley with 2-3/16” Roller Bearings

— 16” Rubber Lagged Head Pulley with 2-7/16” Roller Bearings

— CEMA C 5” Troughing Idlers with Sealed Bearings and Return Rollers

— 3 Ply Rubber Conveyor Belting, 1/4 x 1/16” Covers

— 5’ Long Receiving Hopper with ½” x 8” Skirt Board Rubber

— CR&S Guarding Package on Head Pulley, V-Belt Drive, Tail Pulley and Return Rollers

Optional Equipment:

— Adjustable Height Support Stand

— Pit Portable Radial Stacker Carrier

— Electrical Switchgear

— Head Pulley Pre-Cleaner

— Bolt on Hopper Wings
